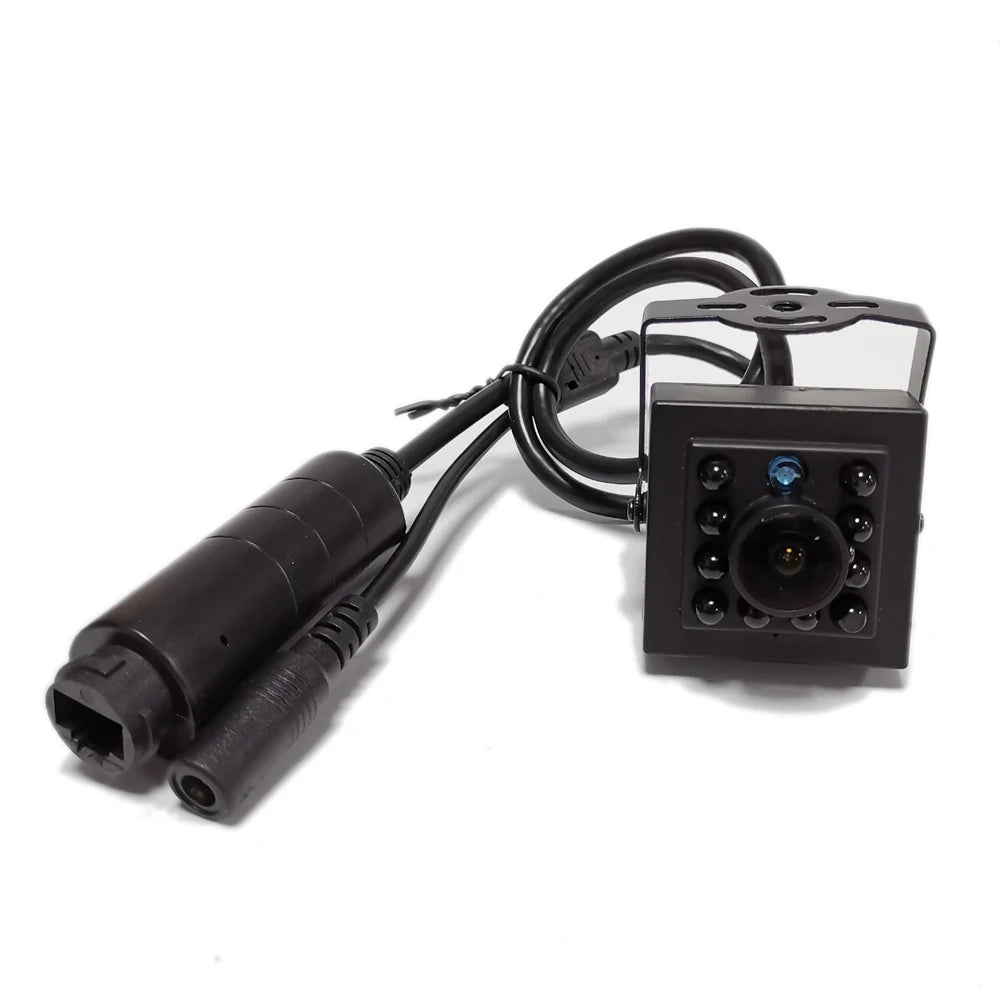

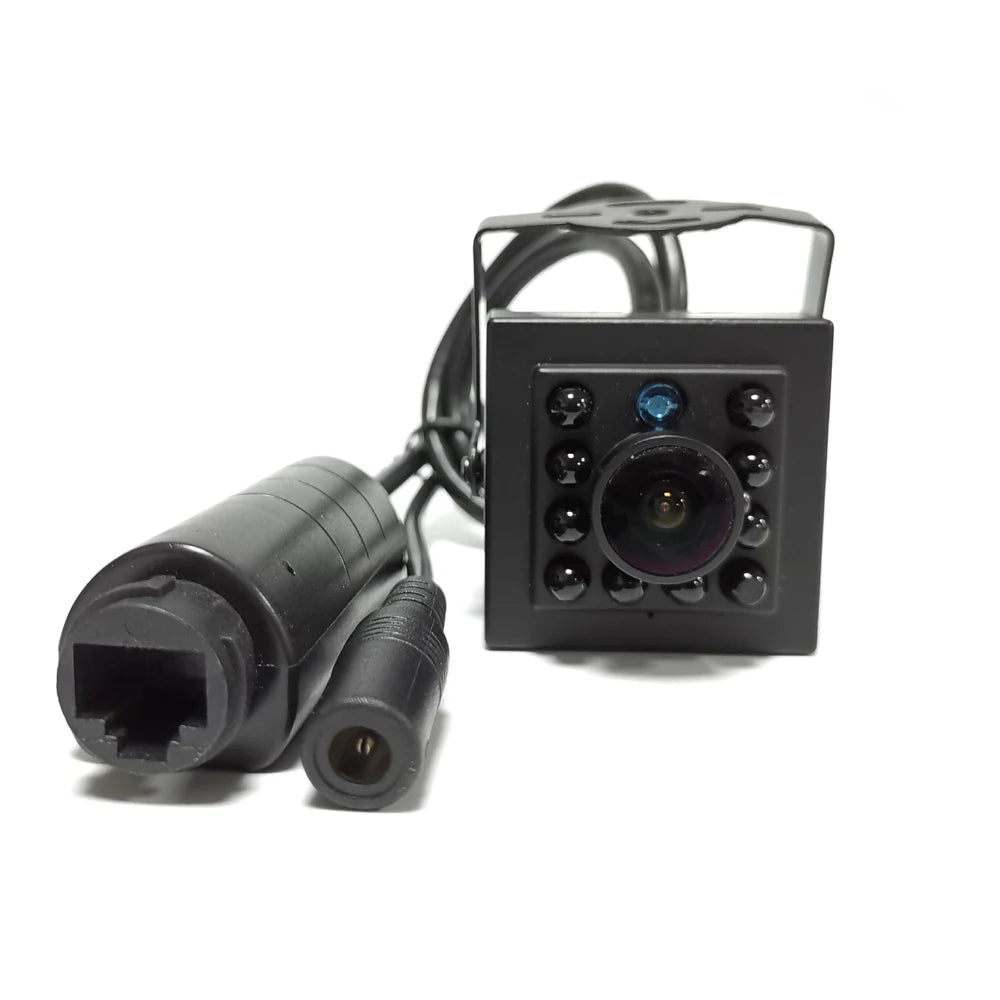

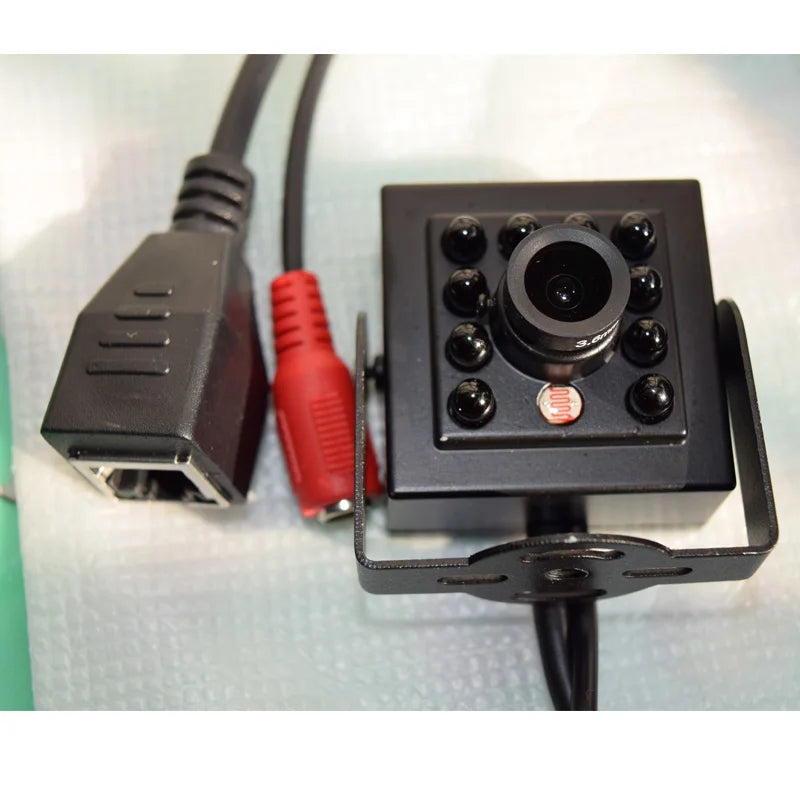

4K Ultra HD 8MP IP Camera Indoor H.265 Onvif Mini Small CCTV Night Vision IR 940nm POE Security Camera Inside Birdcage Machine
4K Ultra HD 8MP IP Camera Indoor H.265 Onvif Mini Small CCTV Night Vision IR 940nm POE Security Camera Inside Birdcage Machine
Couldn't load pickup availability
SPECIFICATIONS
AI Functions: Motion Detection
Alarm Action: FTP Photo, Email Photo
Audio Output: None
Brand Name: HQCAM
Certification: CE
Choice: yes
Color: black
Color Night Vision: No
Compression Forma: Advanced H.265/H.264 video compression
Connectivity: IP/Network Wired

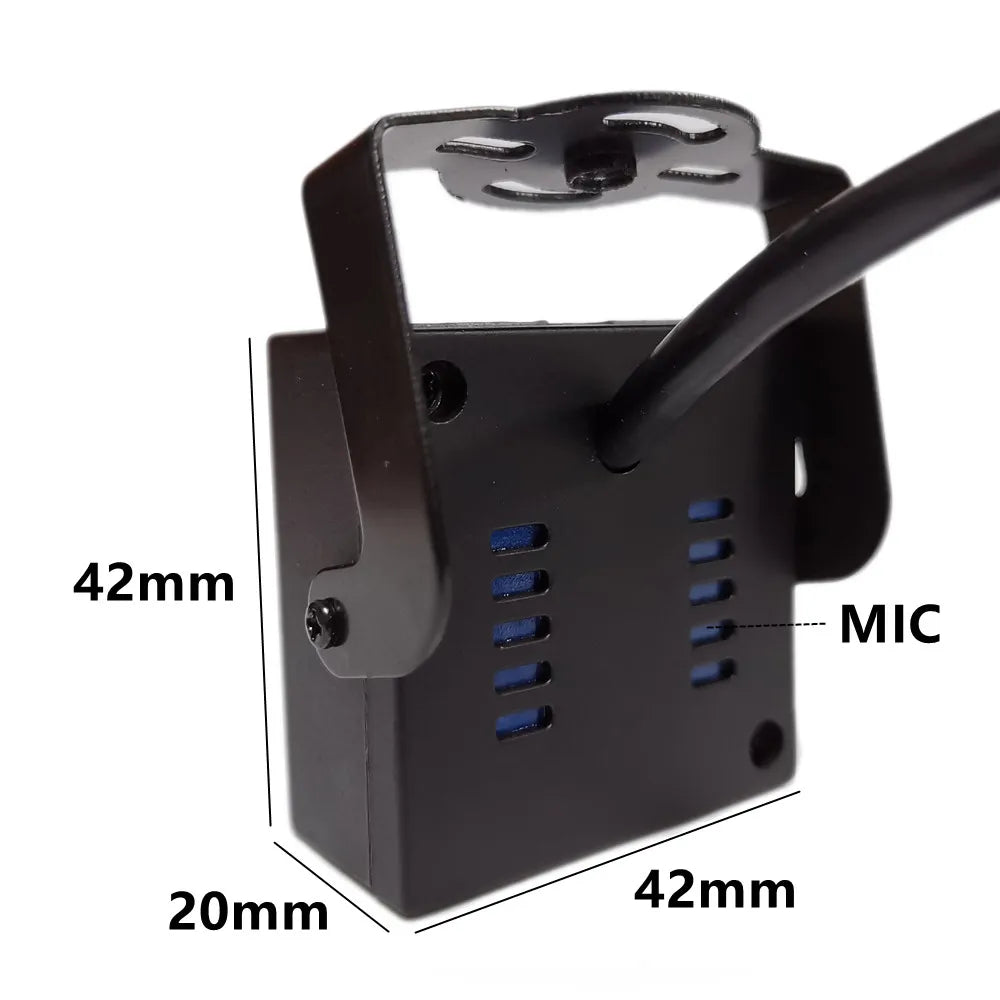

Dimensions (L x W x D)(mm): 40*40mm
High Definition: None
Highly concerned Chemical: None
Housing Material: Aluminum-alloy Metal
IR Distance(m): 5,1-10 meters
Installation: Embedded
Internal Storage: None
Lens (mm): 0MM
Lens Quantity: Single lens
Megapixels: 8MP
Minimum Illumination(Lux): 0.001Lux F1.2
Model Number: 8MP IP Camera
Optional POE: 48V
Origin: Mainland China
Power Consumption(W): 12V2A(Not included Power Supply )
Power Supply: Normal
Power Supply(V): DC12V
Scene: Indoor
Sensor: CMOS
Sensor Brand: Omnivision
Smart home platform: other
Special Features: MINI
Specific: IR-CUT filter
Style: Mini Camera
Style 1: IP Camera
Style 2: CCTV Camera
Style 3: Security Camera
Style 4: Surveillance Camera
Style 5: Video Surveillance
Style6: Surveillance
Style7: IP camera Poe
Style8: IP camera indoor
Style9: 940nm LED hidden
Supported Mobile Systems: Android, IOS
Supported Operating Systems: Windows XP, Windows Vista
TF Card: None
Video Compression Format: H.264, H.265
Viewing Angle: 150°
Zoom: None
Zoom type: None
is_customized: Yes
semi_Choice: yes

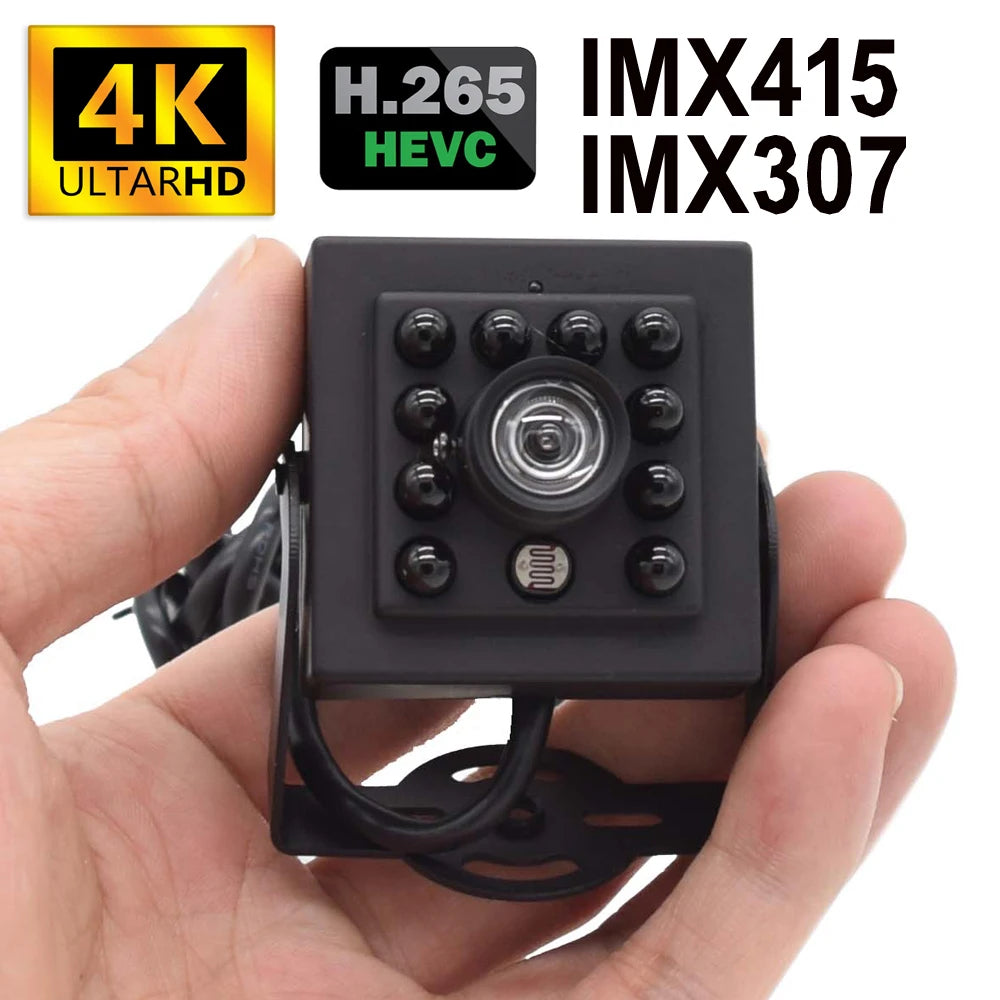

For SONY Sensor solutions, please click on the photo belo.w

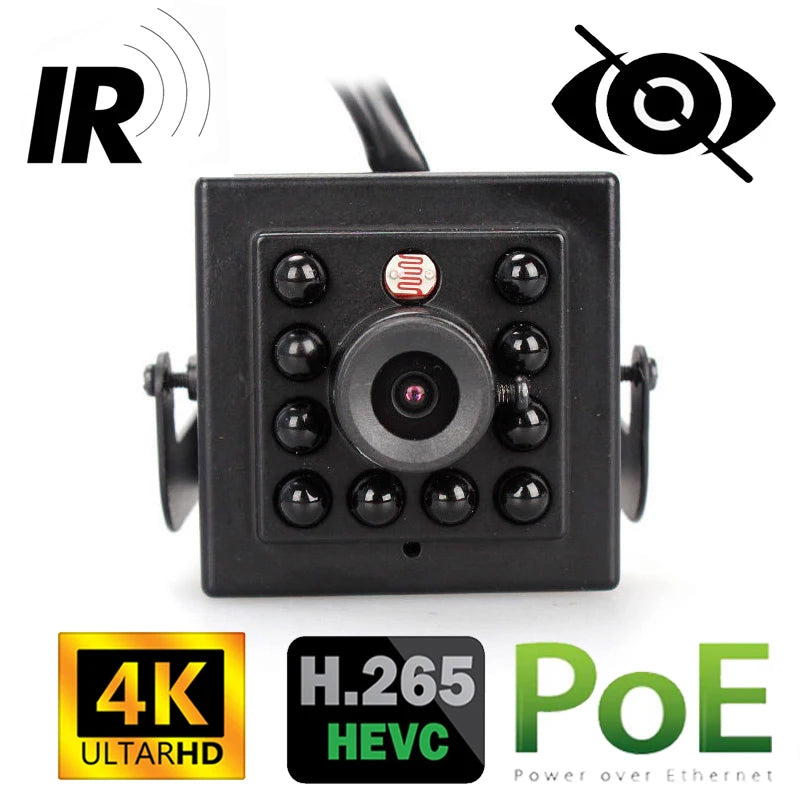

8MP 4K Feature
Supporting Face detection, Humanoiddetectionn, and supports customization of other smart functions;
8.0MP HD Black light illumination resolution, clear and fine images;
Support 2D/3D noise reduction, digital wide dynamic range;

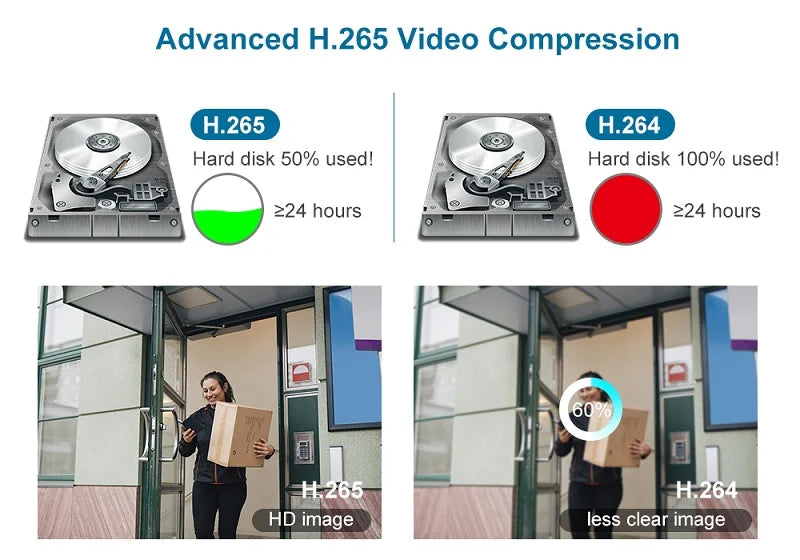

Advanced H.265(Compatible with H.264) video compression, Super low rate, high definition quality of image;
Professional anti-lightning, conform to GB/T17626.5 and IEC61000-4-5;
Support ONVIF, access third party;
Support various mobile monitoring(iPhone, Android);

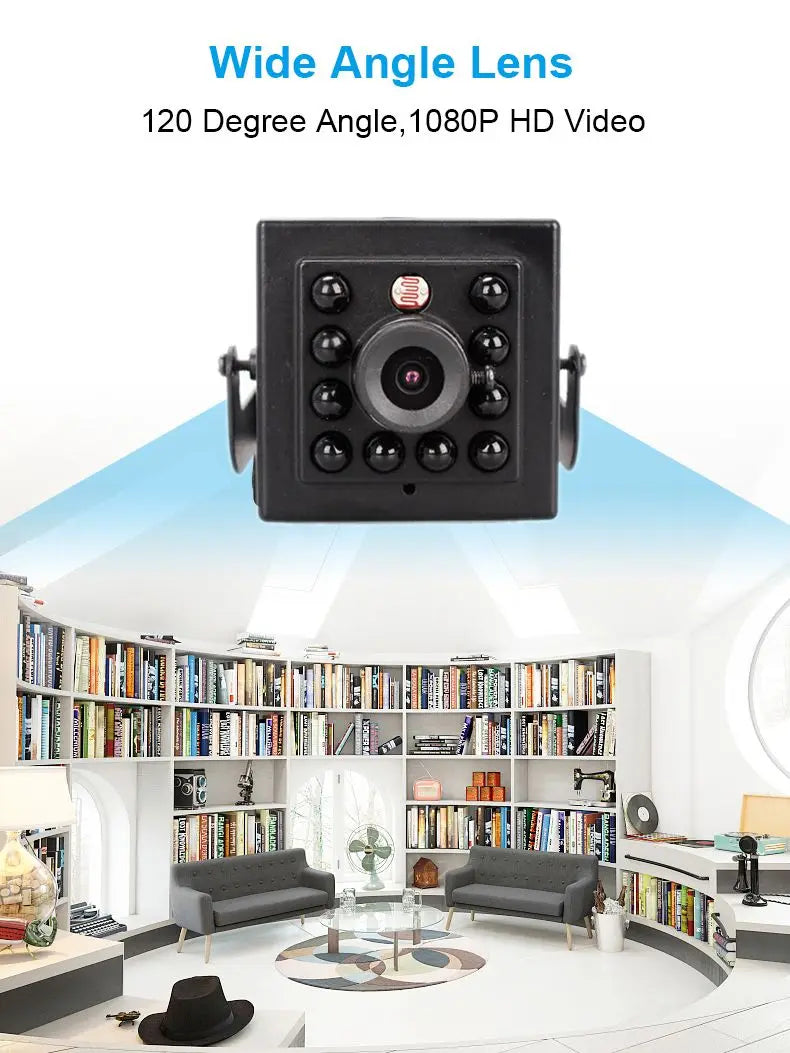

Different angle lenses are available120-degreee lens is 2.1mm, and the standard configuration isa 3.6mm lens, about 90 degrees

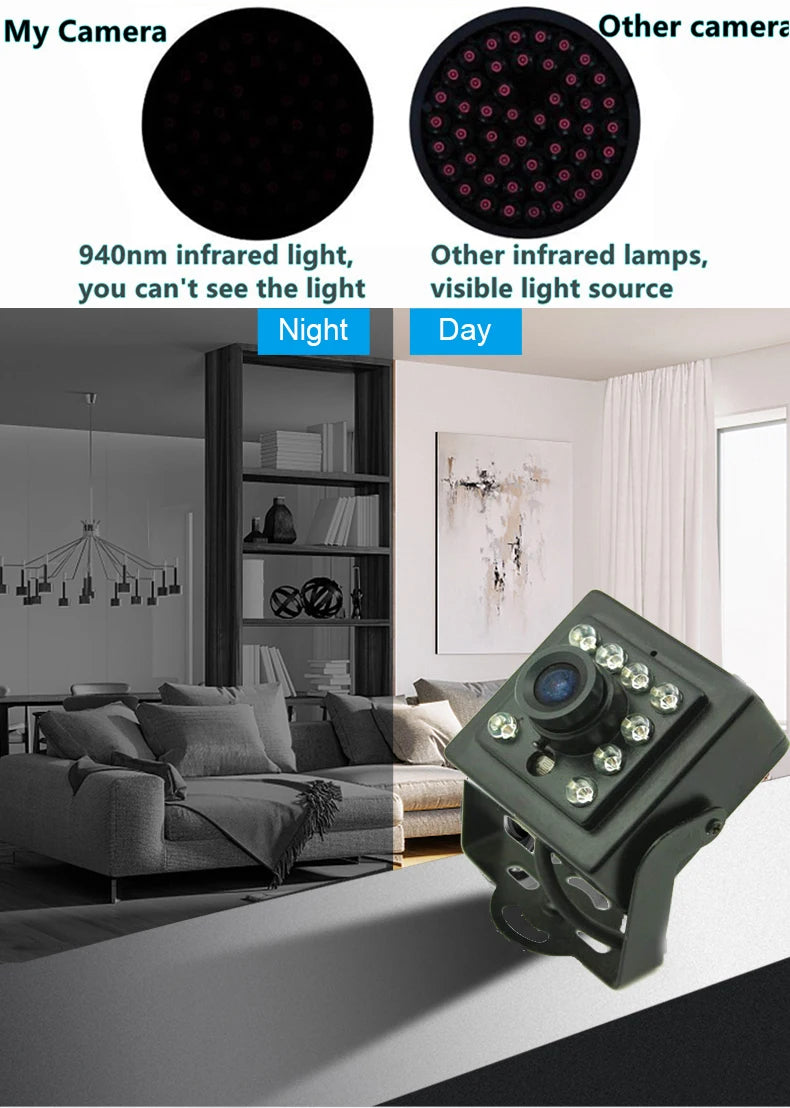

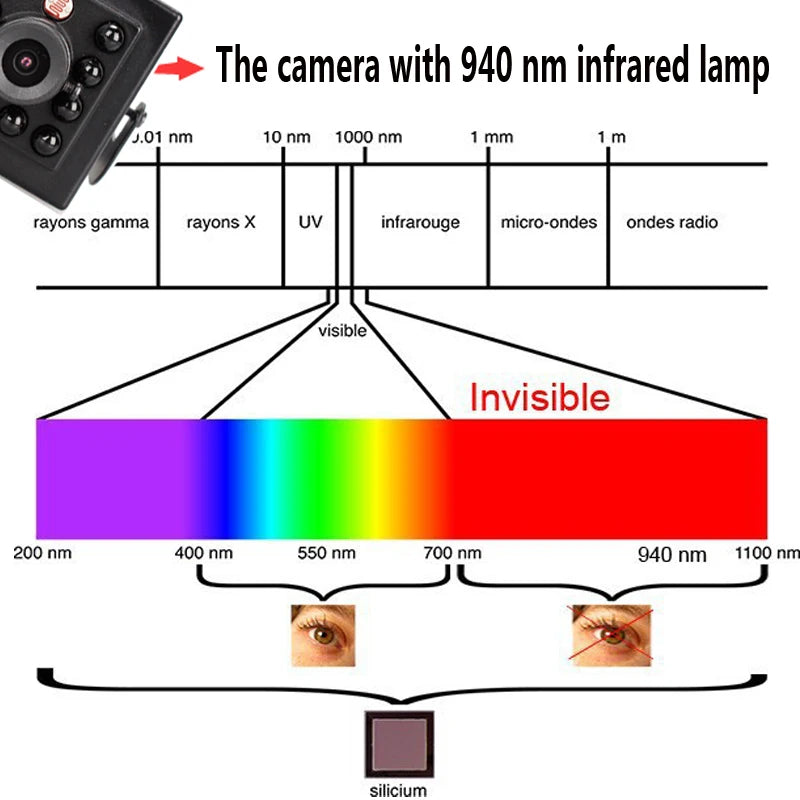

Hid---den infrared lamp
940nm infrared lamp, invisible light source to human eyes, no harm to birds and animals, veryhigh - - density

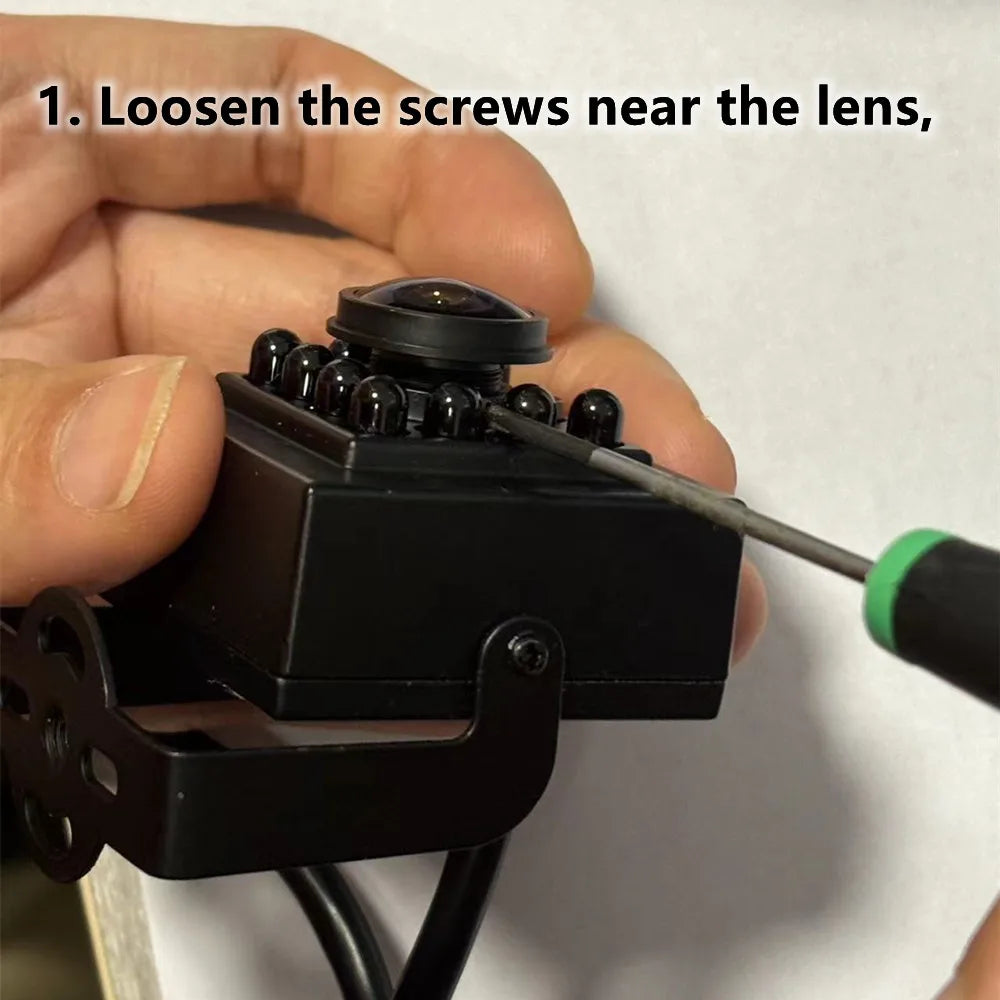

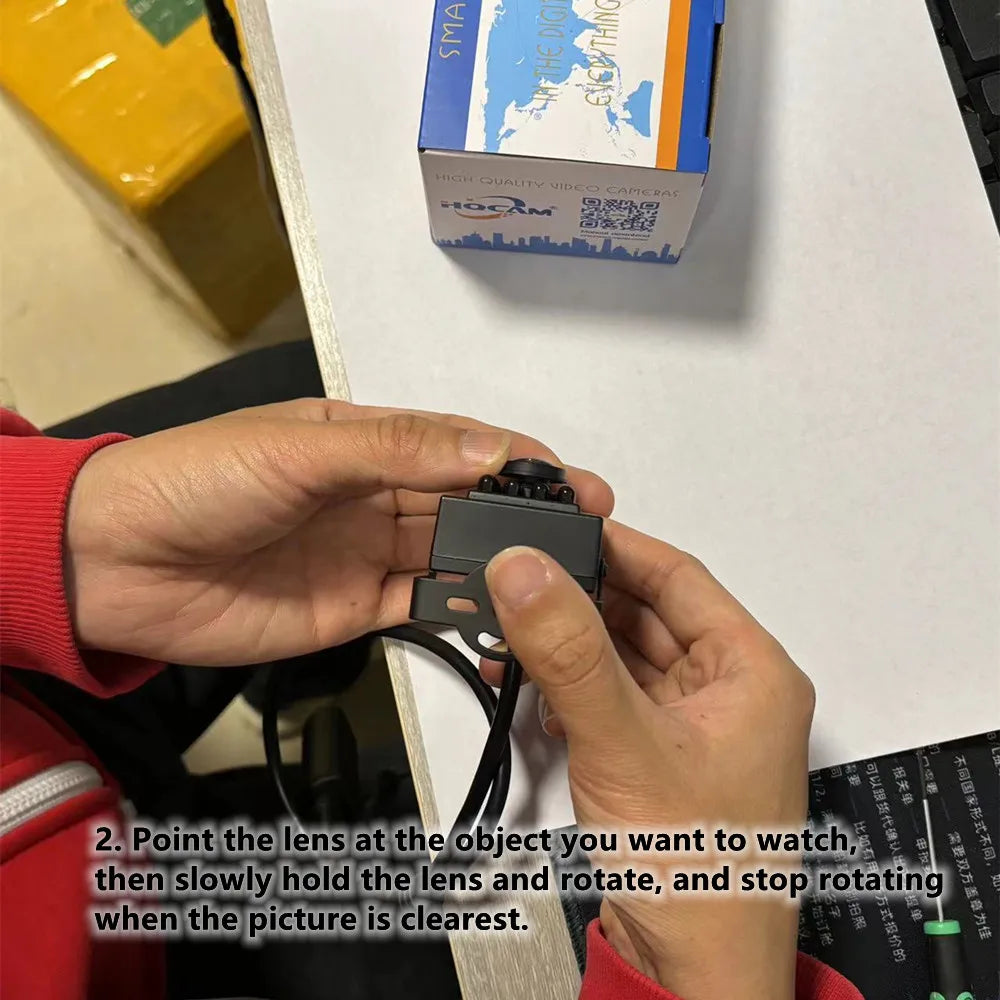

Lens focus adjustment:
1. Loosen the screws near the lens,
2. Point the lens at the object you want to watch, then slowly hold the lens and rotate, and stop rotating when the picture is clearest.
Note: The lens cannot be rotated to the bottom, single counterclockwise rotation cannot be rotated, please try clockwise rotation

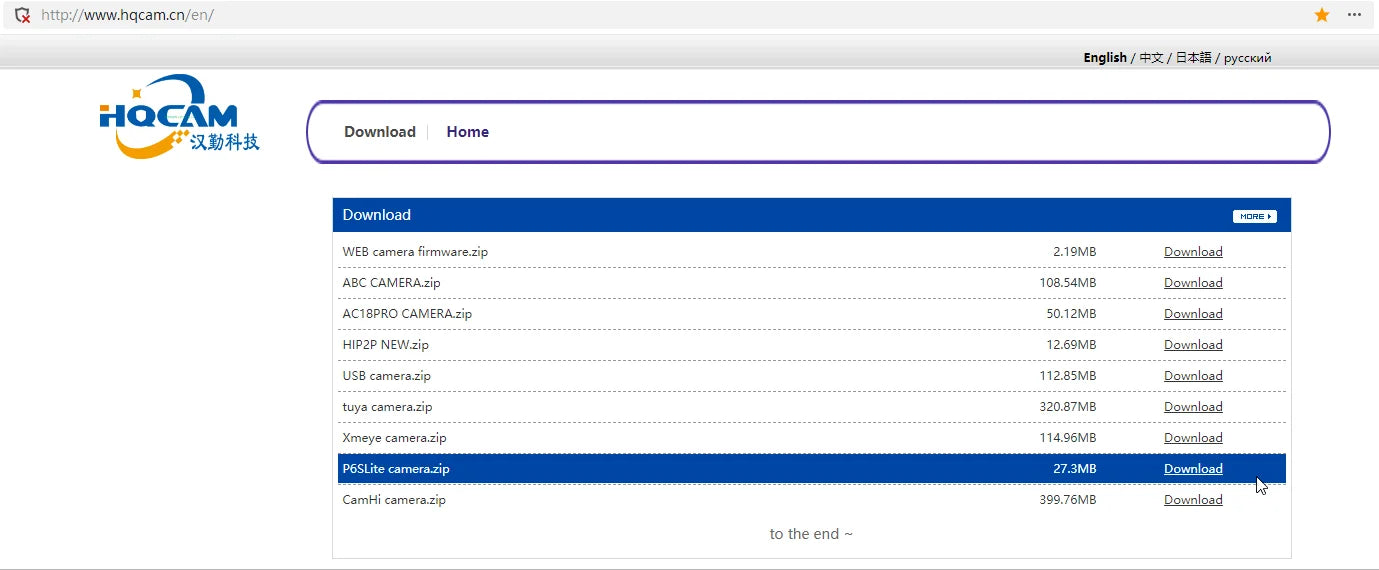

Please download the electronic document manual from the websit.e
|
OS |
Parameters |
4K 8MP |
|
kernel |
System |
Linux |
|
Processor |
Mstar |
|
|
Video |
Image sensor |
8MP Super Low illuminance COMS image sensor |
|
Video Codec |
H.265 main profile and baseline |
|
|
LEN |
3.7mm |
|
|
IR LED |
10pcs 940nm LED |
|
|
IR distance |
1-10M |
|
|
Support a mobile phone |
All phone |
|
|
P2P |
PHONE, IE, P2P Clien,t global Internet |
|
|
Video Resolution |
First stream:4K 8MP(3840*2160)@15fps/5MP(2880*1624)@25fps/4MP(2560*1440)@25fps/ 3MP(2304*1296)@25fps/2MP(1920*1080)@25fps can be set |
|
|
4K 8MP(3840*2160) |
||
|
Second stream:1280*720,800*448,704*576,640*360 |
||
|
Three stream:640*360/352*288 |
||
|
frame rate |
8MP:15fps,5MP:25fps,4MP:25fps,3MP:25fps,2MP:25fps |
|
|
Video compression |
32Kbits/S～12280Mbits/S |
|
|
Mi n.Lux |
Color>0.01 LUX B&W<0 LUX |
|
|
Store |
SD card |
NA |
|
Client/Browser |
Support |
|
|
Record |
Client |
support |
|
Browser |
Support |
|
|
SD CARD |
not Support |
|
|
Playback |
Client |
support |
|
Browser |
Support |
|
|
SD CARD |
not support |
|
|
SD Card |
Does Not |
to support SD card |
|
|
||
|
Audio |
Audio input |
The mic is built intothe camera |
|
Audio output |
SNA |
|
|
Audio Codec |
G.726/G.711 |
|
|
Internet |
Internet face |
10Base-T/100Base-TX, POE |
|
Network Protocol |
TCP/IP, HTTPS,TCP, ICMP ,UD P,ARP, IG MP,S MTP ,FTP ,DH CP,D NS, DDNS ,NTP,UPNP,RTSP |
|
|
Access Protocol |
ONVIF |
|
|
Alarm |
Motion detection |
At most 4 respective regions |
|
Alarm linkage |
Alarm picture send E-mail, alarm images upload FTP server |
|
|
Snap |
Time snap |
Regular support capturing images to the FTP server |
|
safe |
User management |
Provide three levels of rights management (admin, user, guest), support to modify login user name and password |
|
Other |

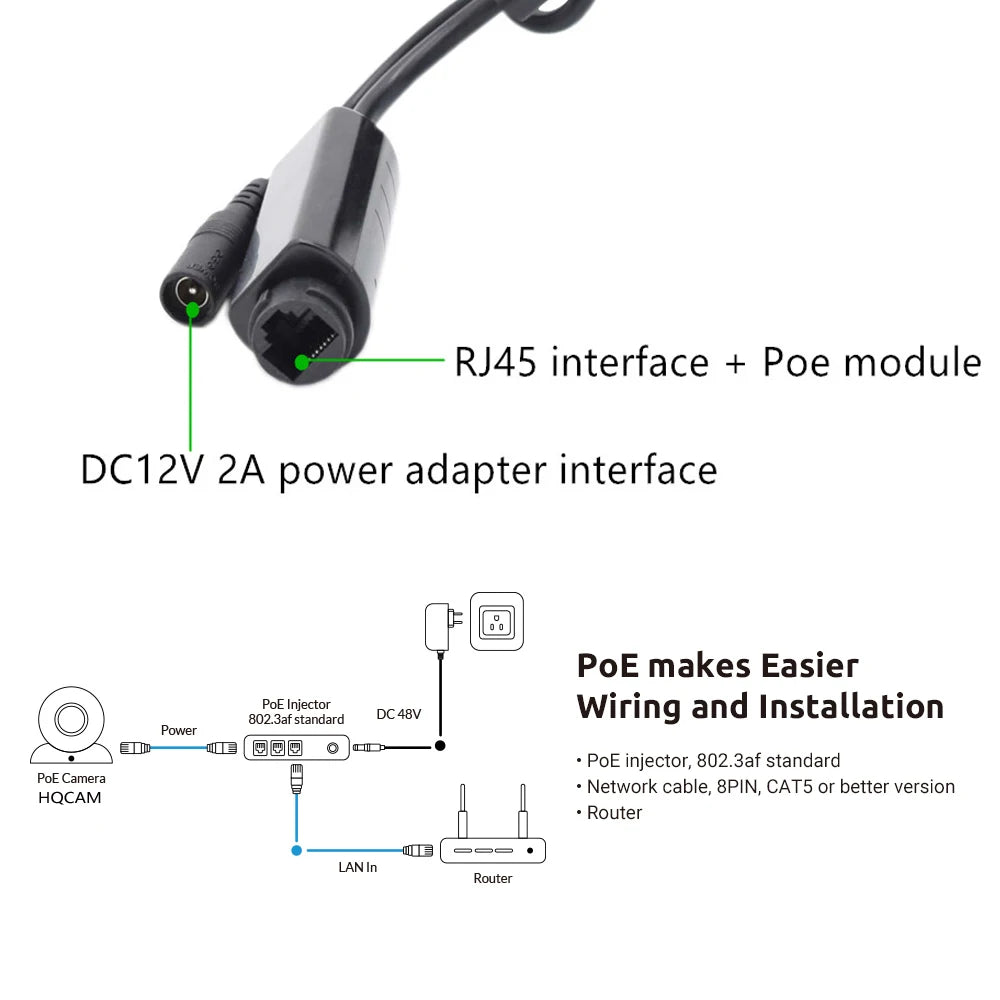

Inter Power,consumption |
DC12V 2A/POE (The package does not provide a power adapter) |
|
Working temperature |
-40℃ ～ +55℃ |
|
|
Working Humidity |
10-95% |
|
